Honda Element check engine light diagnostic reference

Your Element toolkit / Fix something / Manuals & reference

Honda Element diagnostic codes

Search your OBD-II code to see what it means and find related Honda Element repair resources.

SEARCH YOUR CODE

I have a code

Search your code

Enter the code from your scanner. The full 597-row reference remains crawlable below.

597 original entries

597 diagnostic-code entries ready.

Your diagnostic result will appear here.Try a code like P2646, P0420, or P0700.

Need to read your code?

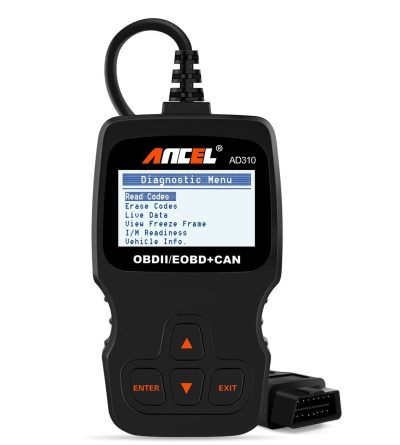

Use an OBD-II scanner to retrieve the diagnostic code from your Element.

This keeps the original Honda Element Parts scanner recommendation and affiliate destination intact.

Click Here to Buy!

Find it / understand it

Full diagnostic-code reference library

The original Honda Element Parts code list is preserved below, grouped by the existing code-family headings from the source article.

Px1xx Air-Fuel Measurement

94 entries
CodeDescriptionHonda note / applicability
P0100 Mass or volume air flow circuit malfunction General OBD-II descriptor
P0101 Mass Airflow (MAF) sensor range/performance problem Honda-specific descriptor
P0102 Mass Airflow (MAF) sensor circuit low voltage Honda-specific descriptor
P0103 Mass Airflow (MAF) sensor circuit high voltage Honda-specific descriptor
P0104 Mass or volume air flow circuit intermittent General OBD-II descriptor
P0105 Manifold Absolute Pressure/barometric pressure circuit malfunction General OBD-II descriptor
P0106 Manifold Absolute Pressure (MAP) sensor range/performance problem Honda-specific descriptor
P0107 Manifold Absolute Pressure (MAP) sensor circuit low voltage Honda-specific descriptor; Footnote 4, 5
P0108 Manifold Absolute Pressure (MAP) sensor circuit high voltage Honda-specific descriptor
P0109 Manifold Absolute Pressure/barometric pressure circuit intermittent General OBD-II descriptor
P0110 Intake air temperature circuit malfunction General OBD-II descriptor
P0111 Intake Air Temperature (IAT) sensor circuit range/performance problem Honda-specific descriptor; Footnote 7
P0112 Intake Air Temperature (IAT) sensor circuit low voltage Honda-specific descriptor
P0113 Intake Air Temperature (IAT) sensor circuit high voltage Honda-specific descriptor
P0114 Intake air temperature circuit intermittent General OBD-II descriptor
P0115 Engine coolant temperature circuit malfunction General OBD-II descriptor
P0116 Engine Coolant Temperature (ECT) sensor circuit range/performance problem Honda-specific descriptor; Footnote 6, 7
P0117 Engine Coolant Temperature (ECT) sensor circuit low input Honda-specific descriptor
P0118 Engine Coolant Temperature (ECT) sensor circuit high input Honda-specific descriptor
P0119 Engine coolant temperature circuit intermittent General OBD-II descriptor
P0120 Throttle position sensor/switch A circuit malfunction General OBD-II descriptor
P0121 Throttle position sensor/switch A circuit range/performance problem General OBD-II descriptor
P0122 Throttle Position (TP) sensor circuit low input Honda-specific descriptor; Footnote 4, 5
P0123 Throttle Position (TP) sensor circuit high input Honda-specific descriptor
P0124 Throttle position sensor/switch A circuit intermittent General OBD-II descriptor
P0125 Engine Coolant Temperature (ECT) sensor slow response Honda-specific descriptor
P0126 Insufficient coolant temperature for stable operation General OBD-II descriptor
P0128 Cooling system malfunction Honda-specific descriptor
P0130 O2 sensor circuit malfunction (Bank I Sensor 1) General OBD-II descriptor
P0131 Primary heated oxygen sensor (Primary HO2S) (sensor 1) circuit low voltage Honda-specific descriptor
P0132 Primary heated oxygen sensor (Primary HO2S) (sensor 1) circuit high voltage Honda-specific descriptor
P0133 Rear Air/Fuel Ratio (A/F) sensor (bank 1, sensor 1) circuit slow response Honda-specific descriptor
P0134 Air/Fuel Ratio (A/F) sensor (sensor 1) no activity detected Honda-specific descriptor
P0135 Primary heated oxygen sensor (primary HO2S) (sensor 1) heater circuit malfunction Honda-specific descriptor
P0136 O2 sensor circuit malfunction (Bank I Sensor 2) General OBD-II descriptor
P0137 Secondary heated oxygen sensor (secondary HO2S) circuit low voltage Honda-specific descriptor; Footnote 4, 5
P0138 Secondary heated oxygen sensor (secondary HO2S) circuit high voltage Honda-specific descriptor; Footnote 4, 5
P0139 Secondary heated oxygen sensor (secondary HO2S) slow response Honda-specific descriptor; Footnote 4, 5
P0140 O2 sensor circuit no activity detected (Bank 1 Sensor 2) General OBD-II descriptor
P0141 Secondary heated oxygen sensor (secondary HO2S) (sensor 2) heater circuit malfunction Honda-specific descriptor
P0142 O2 sensor circuit malfunction (Bank I Sensor 3) General OBD-II descriptor
P0143 Third heated oxygen sensor (third HO2S) (sensor 3) circuit low voltage Honda-specific descriptor
P0144 Third heated oxygen sensor (third HO2S) (sensor 3) circuit high voltage Honda-specific descriptor
P0145 Third heated oxygen sensor (third HO2S) (sensor 3) circuit slow response Honda-specific descriptor
P0146 O2 sensor circuit no activity detected (Bank I Sensor 3) General OBD-II descriptor
P0147 O2 sensor heater circuit malfunction (Bank I Sensor 3) General OBD-II descriptor
P0150 O2 sensor circuit malfunction (Bank 2 Sensor I) General OBD-II descriptor
P0151 O2 sensor circuit low voltage (Bank 2 Sensor I) General OBD-II descriptor
P0152 O2 sensor circuit high voltage (Bank 2 Sensor 1) General OBD-II descriptor
P0153 O2 sensor circuit slow response (Bank 2 Sensor 1) General OBD-II descriptor
P0154 O2 sensor circuit no activity detected (Bank 2 Sensor 1) General OBD-II descriptor
P0155 O2 sensor heater circuit malfunction (Bank 2 Sensor 1) General OBD-II descriptor
P0156 O2 sensor circuit malfunction (Bank 2 Sensor 2) General OBD-II descriptor
P0157 O2 sensor circuit low voltage (Bank 2 Sensor 2) General OBD-II descriptor
P0158 O2 sensor circuit high voltage (Bank 2 Sensor 2) General OBD-II descriptor
P0159 O2 sensor circuit slow response (Bank 2 Sensor 2) General OBD-II descriptor
P0160 O2 sensor circuit no activity detected (Bank 2 Sensor 2) General OBD-II descriptor
P0161 O2 sensor heater circuit malfunction (Bank 2 Sensor 2) General OBD-II descriptor
P0162 O2 sensor circuit malfunction (Bank 2 Sensor 3) General OBD-II descriptor
P0163 O2 sensor circuit low voltage (Bank 2 Sensor 3) General OBD-II descriptor
P0164 O2 sensor circuit high voltage (Bank 2 Sensor 3) General OBD-II descriptor
P0165 O2 sensor circuit slow response (Bank 2 Sensor 3) General OBD-II descriptor
P0166 O2 sensor circuit no activity detected (Bank 2 Sensor 3) General OBD-II descriptor
P0167 O2 sensor heater circuit malfunction (Bank 2 Sensor 3) General OBD-II descriptor
P0170 Fuel trim malfunction (Bank 1) General OBD-II descriptor
P0171 System too lean (Bank 1) General OBD-II descriptor
P0172 System too rich (Bank 1) General OBD-II descriptor
P0173 Fuel trim malfunction (Bank 2) General OBD-II descriptor
P0174 System too lean (Bank 2) General OBD-II descriptor
P0175 System too rich (Bank 2) General OBD-II descriptor
P0176 Fuel composition sensor circuit malfunction General OBD-II descriptor
P0177 Fuel composition sensor circuit range/performance General OBD-II descriptor
P0178 Fuel composition sensor circuit low input General OBD-II descriptor
P0179 Fuel composition sensor circuit high input General OBD-II descriptor
P0180 Fuel temperature sensor A circuit malfunction General OBD-II descriptor
P0181 Fuel temperature sensor A circuit range/performance General OBD-II descriptor
P0182 Fuel temperature sensor A circuit low input General OBD-II descriptor
P0183 Fuel temperature sensor A circuit high input General OBD-II descriptor
P0184 Fuel temperature sensor A circuit intermittent General OBD-II descriptor
P0185 Fuel temperature sensor B circuit malfunction General OBD-II descriptor
P0186 Fuel temperature sensor B circuit range/performance General OBD-II descriptor
P0187 Fuel temperature sensor B circuit low input General OBD-II descriptor
P0188 Fuel temperature sensor B circuit high input General OBD-II descriptor
P0189 Fuel temperature sensor B circuit intermittent General OBD-II descriptor
P0190 Fuel rail pressure sensor circuit malfunction General OBD-II descriptor
P0191 Fuel rail pressure sensor circuit range/performance General OBD-II descriptor
P0192 Fuel rail pressure sensor circuit low input General OBD-II descriptor
P0193 Fuel rail pressure sensor circuit high input General OBD-II descriptor
P0194 Fuel rail pressure sensor circuit intermittent General OBD-II descriptor
P0195 Engine oil temperature sensor malfunction General OBD-II descriptor
P0196 Engine oil temperature sensor range/performance General OBD-II descriptor
P0197 Engine oil temperature sensor low General OBD-II descriptor
P0198 Engine oil temperature sensor high General OBD-II descriptor
P0199 Engine oil temperature sensor intermittent General OBD-II descriptor

Px2xx Air-Fuel Measurement

97 entries
CodeDescriptionHonda note / applicability
P0200 Injector circuit malfunction General OBD-II descriptor
P0201 Injector circuit malfunction—cylinder 1 General OBD-II descriptor
P0202 Injector circuit malfunction—cylinder 2 General OBD-II descriptor
P0203 Injector circuit malfunction—cylinder 3 General OBD-II descriptor
P0204 Injector circuit malfunction—cylinder 4 General OBD-II descriptor
P0205 Injector circuit malfunction—cylinder 5 General OBD-II descriptor
P0206 Injector circuit malfunction—cylinder 6 General OBD-II descriptor
P0207 Injector circuit malfunction—cylinder 7 General OBD-II descriptor
P0208 Injector circuit malfunction—cylinder 8 General OBD-II descriptor
P0209 Injector circuit malfunction—cylinder 9 General OBD-II descriptor
P0210 Injector circuit malfunction—cylinder 10 General OBD-II descriptor
P0211 Injector circuit malfunction—cylinder 11 General OBD-II descriptor
P0212 Injector circuit malfunction—cylinder 12 General OBD-II descriptor
P0213 Cold start injector 1 malfunction General OBD-II descriptor
P0214 Cold start injector 2 malfunction General OBD-II descriptor
P0215 Engine shutoff solenoid malfunction General OBD-II descriptor
P0216 Injection timing control circuit malfunction General OBD-II descriptor
P0217 Engine overtemp condition General OBD-II descriptor
P0218 Transmission over temperature condition General OBD-II descriptor
P0219 Engine overspeed condition General OBD-II descriptor
P0220 Throttle/pedal position sensor/switch B circuit malfunction General OBD-II descriptor
P0221 Throttle/pedal position sensor/switch B circuit range/performance problem General OBD-II descriptor
P0222 Throttle/pedal position sensor/switch B circuit low input General OBD-II descriptor
P0223 Throttle/pedal position sensor/switch B circuit high input General OBD-II descriptor
P0224 Throttle/pedal position sensor/switch B circuit intermittent General OBD-II descriptor
P0225 Throttle/pedal position sensor/switch C circuit malfunction General OBD-II descriptor
P0226 Throttle/pedal position sensor/switch C circuit range/performance problem General OBD-II descriptor
P0227 Throttle/pedal position sensor/switch C circuit low input General OBD-II descriptor
P0228 Throttle/pedal position sensor/switch C circuit high input General OBD-II descriptor
P0229 Throttle/pedal position sensor/switch C circuit intermittent General OBD-II descriptor
P0230 Fuel pump primary circuit malfunction General OBD-II descriptor
P0231 Fuel pump secondary circuit low General OBD-II descriptor
P0232 Fuel pump secondary circuit high General OBD-II descriptor
P0233 Fuel pump secondary circuit intermittent General OBD-II descriptor
P0234 Engine overboost condition General OBD-II descriptor
P0235 Turbocharger boost sensor A circuit malfunction General OBD-II descriptor
P0236 Turbocharger boost sensor A circuit range/performance General OBD-II descriptor
P0237 Turbocharger boost sensor A circuit low General OBD-II descriptor
P0238 Turbocharger boost sensor A circuit high General OBD-II descriptor
P0239 Turbocharger boost sensor B malfunction General OBD-II descriptor
P0240 Turbocharger boost sensor B circuit range/performance General OBD-II descriptor
P0241 Turbocharger boost sensor B circuit low General OBD-II descriptor
P0242 Turbocharger boost sensor B circuit high General OBD-II descriptor
P0243 Turbocharger wastegate solenoid A malfunction General OBD-II descriptor
P0244 Turbocharger wastegate solenoid A range/performance General OBD-II descriptor
P0245 Turbocharger wastegate solenoid A low General OBD-II descriptor
P0246 Turbocharger wastegate solenoid A high General OBD-II descriptor
P0247 Turbocharger wastegate solenoid B malfunction General OBD-II descriptor
P0248 Turbocharger wastegate solenoid B range/performance General OBD-II descriptor
P0249 Turbocharger wastegate solenoid B low General OBD-II descriptor
P0250 Turbocharger wastegate solenoid B high General OBD-II descriptor
P0251 Injection pump fuel metering control A malfunction (cam/rotor/injector) General OBD-II descriptor
P0252 Injection pump fuel metering control A range/performance (cam/rotor/injector) General OBD-II descriptor
P0253 Injection pump fuel metering control A low (cam/rotor/injector) General OBD-II descriptor
P0254 Injection pump fuel metering control A high (cam/rotor/injector) General OBD-II descriptor
P0255 Injection pump fuel metering control A intermittent (cam/rotor/injector) General OBD-II descriptor
P0256 Injection pump fuel metering control B malfunction (cam/rotor/injector) General OBD-II descriptor
P0257 Injection pump fuel metering control B range/performance injector) General OBD-II descriptor
P0258 Injection pump fuel metering control B low (cam/rotor/injector) General OBD-II descriptor
P0259 Injection pump fuel metering control B high (cam/rotor/injector) General OBD-II descriptor
P0260 Injection pump fuel metering control B intermittent injector) General OBD-II descriptor
P0261 Cylinder 1 injector circuit low General OBD-II descriptor
P0262 Cylinder 1 injector circuit high General OBD-II descriptor
P0263 Cylinder 1 contribution/balance fault General OBD-II descriptor
P0264 Cylinder 2 injector circuit low General OBD-II descriptor
P0265 Cylinder 2 injector circuit high General OBD-II descriptor
P0266 Cylinder 2 contribution/balance fault General OBD-II descriptor
P0267 Cylinder 3 injector circuit low General OBD-II descriptor
P0268 Cylinder 3 injector circuit high General OBD-II descriptor
P0269 Cylinder 3 contribution/balance fault General OBD-II descriptor
P0270 Cylinder 4 injector circuit low General OBD-II descriptor
P0271 Cylinder 4 injector circuit high General OBD-II descriptor
P0272 Cylinder 4 contribution/balance fault General OBD-II descriptor
P0273 Cylinder 5 injector circuit low General OBD-II descriptor
P0274 Cylinder 5 injector circuit high General OBD-II descriptor
P0275 Cylinder S contribution/balance fault General OBD-II descriptor
P0276 Cylinder 6 injector circuit low General OBD-II descriptor
P0277 Cylinder 6 injector circuit high General OBD-II descriptor
P0278 Cylinder 6 contribution/balance fault General OBD-II descriptor
P0279 Cylinder 7 injector circuit low General OBD-II descriptor
P0280 Cylinder 7 injector circuit high General OBD-II descriptor
P0281 Cylinder 7 contribution/balance fault General OBD-II descriptor
P0282 Cylinder 8 injector circuit low General OBD-II descriptor
P0283 Cylinder 8 injector circuit high General OBD-II descriptor
P0284 Cylinder 8 contribution/balance fault General OBD-II descriptor
P0285 Cylinder 9 injector circuit low General OBD-II descriptor
P0286 Cylinder 9 injector circuit high General OBD-II descriptor
P0287 Cylinder 9 contribution/balance fault General OBD-II descriptor
P0288 Cylinder 10 injector circuit low General OBD-II descriptor
P0289 Cylinder 10 injector circuit high General OBD-II descriptor
P0290 Cylinder 10 contribution/balance fault General OBD-II descriptor
P0291 Cylinder 11 injector circuit low General OBD-II descriptor
P0292 Cylinder 11 injector circuit high General OBD-II descriptor
P0293 Cylinder 11 contribution/balance fault General OBD-II descriptor
P0294 Cylinder 12 injector circuit low General OBD-II descriptor
P0295 Cylinder 12 injector circuit high General OBD-II descriptor
P0296 Cylinder 12 contribution/range fault General OBD-II descriptor

Px3xx Ignition System

82 entries
CodeDescriptionHonda note / applicability
P0300 Random/multiple cylinder misfire detected General OBD-II descriptor
P0301 Cylinder 1 misfire detected General OBD-II descriptor
P0302 Cylinder 2 misfire detected General OBD-II descriptor
P0303 Cylinder 3 misfire detected General OBD-II descriptor
P0304 Cylinder 4 misfire detected General OBD-II descriptor
P0305 Cylinder 5 misfire detected General OBD-II descriptor
P0306 Cylinder 6 misfire detected General OBD-II descriptor
P0307 Cylinder 7 misfire detected General OBD-II descriptor
P0308 Cylinder 8 misfire detected General OBD-II descriptor
P0309 Cylinder 9 misfire detected General OBD-II descriptor
P0310 Cylinder 10 misfire detected General OBD-II descriptor
P0311 Cylinder 11 misfire detected General OBD-II descriptor
P0312 Cylinder 12 misfire detected General OBD-II descriptor
P0313 Misfire detected with low fuel General OBD-II descriptor
P0314 Single cylinder misfire (cylinder not specified) General OBD-II descriptor
P0315 Crankshaft position system variation not learned General OBD-II descriptor
P0316 Misfire detected on startup (first 1000 revolutions) General OBD-II descriptor
P0317 Rough road hardware not present General OBD-II descriptor
P0318 Rough road sensor A signal circuit General OBD-II descriptor
P0319 Rough road sensor B signal circuit General OBD-II descriptor
P0320 Ignition/distributor engine speed input circuit malfunction General OBD-II descriptor
P0321 Ignition/distributor engine speed input circuit range/performance General OBD-II descriptor
P0322 Ignition/distributor engine speed input circuit no signal General OBD-II descriptor
P0323 Ignition/distributor engine speed input circuit intermittent General OBD-II descriptor
P0325 Knock sensor 1 circuit malfunction (bank 2 or single sensor) General OBD-II descriptor
P0326 Knock sensor 1 circuit range/performance (bank 1 or single sensor) General OBD-II descriptor
P0327 Knock sensor 1 circuit low input (bank 1 or single sensor) General OBD-II descriptor
P0328 Knock sensor 1 circuit high input (bank 1 or single sensor) General OBD-II descriptor
P0329 Knock sensor 1 circuit intermittent (bank 1 or single sensor) General OBD-II descriptor
P0330 Knock sensor 2 circuit malfunction (bank 2) General OBD-II descriptor
P0331 Knock sensor 2 circuit range/performance (bank 2) General OBD-II descriptor
P0332 Knock sensor 2 circuit low input (bank 2) General OBD-II descriptor
P0333 Knock sensor 2 circuit high input (bank 2) General OBD-II descriptor
P0334 Knock sensor 2 circuit intermittent (bank 2) General OBD-II descriptor
P0335 Crankshaft position sensor A circuit malfunction General OBD-II descriptor
P0336 Crankshaft position sensor A circuit range/performance General OBD-II descriptor
P0337 Crankshaft position sensor A circuit low input General OBD-II descriptor
P0338 Crankshaft position sensor A circuit high input General OBD-II descriptor
P0339 Crankshaft position sensor A circuit intermittent General OBD-II descriptor
P0340 Camshaft position sensor circuit malfunction General OBD-II descriptor
P0341 Camshaft position sensor circuit range/performance General OBD-II descriptor
P0342 Camshaft position sensor circuit low input General OBD-II descriptor
P0343 Camshaft position sensor circuit high input General OBD-II descriptor
P0344 Camshaft position sensor circuit intermittent General OBD-II descriptor
P0345 Camshaft position sensor A circuit malfunction (Bank 2) General OBD-II descriptor
P0346 Camshaft position sensor A circuit range/performance (Bank 2) General OBD-II descriptor
P0347 Camshaft position sensor A circuit low input (Bank 2) General OBD-II descriptor
P0348 Camshaft position sensor A circuit high input (Bank 2) General OBD-II descriptor
P0349 Camshaft position sensor A circuit intermittent (Bank 2) General OBD-II descriptor
P0350 Ignition coil primary/secondary circuit malfunction General OBD-II descriptor
P0351 Ignition coil A primary/secondary circuit malfunction General OBD-II descriptor
P0352 Ignition coil B primary/secondary circuit malfunction General OBD-II descriptor
P0353 Ignition coil C primary/secondary circuit malfunction General OBD-II descriptor
P0354 Ignition coil D primary/secondary circuit malfunction General OBD-II descriptor
P0355 Ignition coil E primary/secondary circuit malfunction General OBD-II descriptor
P0356 Ignition coil F primary/secondary circuit malfunction General OBD-II descriptor
P0357 Ignition coil G primary/secondary circuit malfunction General OBD-II descriptor
P0358 Ignition coil H primary/secondary circuit malfunction General OBD-II descriptor
P0359 Ignition coil I primary/secondary circuit malfunction General OBD-II descriptor
P0360 Ignition coil J primary/secondary circuit malfunction General OBD-II descriptor
P0361 Ignition coil K primary/secondary circuit malfunction General OBD-II descriptor
P0362 Ignition coil L primary/secondary circuit malfunction General OBD-II descriptor
P0365 Camshaft position sensor B no signal General OBD-II descriptor
P0369 Camshiaft position sensor B circuit intermittent interruption General OBD-II descriptor
P0370 Timing reference high resolution signal A malfunction General OBD-II descriptor
P0371 Timing reference high resolution signal A too many pulses General OBD-II descriptor
P0372 Timing reference high resolution signal A too few pulses General OBD-II descriptor
P0373 Timing reference high resolution signal A intermittent/erratic pulses General OBD-II descriptor
P0374 Timing reference high resolution signal A no pulses General OBD-II descriptor
P0375 Timing reference high resolution signal B malfunction General OBD-II descriptor
P0376 Timing reference high resolution signal B too many pulses General OBD-II descriptor
P0377 Timing reference high resolution signal B too few pulses General OBD-II descriptor
P0378 Timing reference high resolution signal B intermittent/erratic pulses General OBD-II descriptor
P0379 Timing reference high resolution signal B no pulses General OBD-II descriptor
P0380 Glow plug/heater circuit A malfunction General OBD-II descriptor
P0381 Glow plug/heater indicator circuit malfunction General OBD-II descriptor
P0382 Exhaust gas recirculation flow malfunction General OBD-II descriptor
P0385 Crankshaft position sensor B circuit malfunction General OBD-II descriptor
P0386 Crankshaft position sensor B circuit range/performance General OBD-II descriptor
P0387 Crankshaft position sensor B circuit low input General OBD-II descriptor
P0388 Crankshaft position sensor B circuit high input General OBD-II descriptor
P0389 Crankshaft position sensor B circuit intermittent General OBD-II descriptor

Px4xx Additional Emission Control

79 entries
CodeDescriptionHonda note / applicability
P0400 Exhaust gas recirculation flow malfunction General OBD-II descriptor
P0401 Exhaust gas recirculation flow insufficient detected General OBD-II descriptor
P0402 Exhaust gas recirculation flow excessive detected General OBD-II descriptor
P0403 Exhaust gas recirculation circuit malfunction General OBD-II descriptor
P0404 Exhaust gas recirculation circuit range/performance General OBD-II descriptor
P0405 Exhaust gas recirculation sensor A circuit low General OBD-II descriptor
P0406 Exhaust gas recirculation sensor A circuit high General OBD-II descriptor
P0407 Exhaust gas recirculation sensor B circuit low General OBD-II descriptor
P0408 Exhaust gas recirculation sensor B circuit high General OBD-II descriptor
P0410 Secondary air injection system malfunction General OBD-II descriptor
P0411 Secondary air injection system incorrect flow detected General OBD-II descriptor
P0412 Secondary air injection system switching valve A circuit malfunction General OBD-II descriptor
P0413 Secondary air injection system switching valve A circuit open General OBD-II descriptor
P0414 Secondary air injection system switching valve A circuit shorted General OBD-II descriptor
P0415 Secondary air injection system switching valve B circuit malfunction General OBD-II descriptor
P0416 Secondary air injection system switching valve B circuit open General OBD-II descriptor
P0417 Secondary air injection system switching valve B circuit shorted General OBD-II descriptor
P0418 Secondary air injection system relay A circuit malfunction General OBD-II descriptor
P0419 Secondary air injection system relay B circuit malfunction General OBD-II descriptor
P0420 Catalyst system efficiency below threshold (Bank 1) Footnote 4, 5
P0421 Warm up catalyst efficiency below threshold (Bank 1) General OBD-II descriptor
P0422 Main catalyst efficiency below threshold (Bank 1) General OBD-II descriptor
P0423 Heated catalyst efficiency below threshold (Bank 1) General OBD-II descriptor
P0424 Heated catalyst temperature below threshold (Bank 1) General OBD-II descriptor
P0430 Catalyst system efficiency below threshold (Bank 2) General OBD-II descriptor
P0431 Warm up catalyst efficiency below threshold (Bank 2) General OBD-II descriptor
P0432 Main catalyst efficiency below threshold (Bank 2) General OBD-II descriptor
P0433 Heated catalyst efficiency below threshold (Bank 2) General OBD-II descriptor
P0434 Heated catalyst temperature below threshold (Bank 2) General OBD-II descriptor
P0440 Evaporative emission control system malfunction General OBD-II descriptor
P0441 Evaporative emission control system incorrect purge flow General OBD-II descriptor
P0442 Evaporative emission control system leak detected (small leak) General OBD-II descriptor
P0443 Evaporative emission control system purge control valve circuit General OBD-II descriptor
P0444 Evaporative emission control system purge control valve circuit open General OBD-II descriptor
P0445 Evaporative emission control system purge control valve circuit shorted General OBD-II descriptor
P0446 Evaporative emission control system vent control circuit malfunction General OBD-II descriptor
P0447 Evaporative emission control system vent control circuit open General OBD-II descriptor
P0448 Evaporative emission control system vent control circuit shorted General OBD-II descriptor
P0449 Evaporative emission control system vent valve/solenoid circuit malfunction General OBD-II descriptor
P0450 Evaporative emission control system pressure sensor malfunction General OBD-II descriptor
P0451 Evaporative emission control system pressure sensor range/performance General OBD-II descriptor
P0452 Evaporative emission control system pressure sensor low input Footnote 4, 5
P0453 Evaporative emission control system pressure sensor high input General OBD-II descriptor
P0454 Evaporative emission control system pressure sensor intermittent General OBD-II descriptor
P0455 Evaporative emission control system leak detected (gross leak) General OBD-II descriptor
P0456 Evaporative emissions system small leak detected General OBD-II descriptor
P0457 Evaporative emission control system leak detected General OBD-II descriptor
P0458 Evaporative emission system purge control valve circuit low General OBD-II descriptor
P0459 Evaporative emission system purge control valve circuit high General OBD-II descriptor
P0460 Fuel level sensor circuit malfunction General OBD-II descriptor
P0461 Fuel level sensor circuit range/performance General OBD-II descriptor
P0462 Fuel level sensor circuit low input General OBD-II descriptor
P0463 Fuel level sensor circuit high input General OBD-II descriptor
P0464 Fuel level sensor circuit intermittent General OBD-II descriptor
P0465 Purge flow sensor circuit malfunction General OBD-II descriptor
P0466 Purge flow sensor circuit range/performance General OBD-II descriptor
P0467 Purge flow sensor circuit low input General OBD-II descriptor
P0468 Purge flow sensor circuit high input General OBD-II descriptor
P0469 Purge flow sensor circuit intermittent General OBD-II descriptor
P0470 Exhaust pressure sensor malfunction General OBD-II descriptor
P0471 Exhaust pressure sensor range/performance General OBD-II descriptor
P0472 Exhaust pressure sensor low General OBD-II descriptor
P0473 Exhaust pressure sensor high General OBD-II descriptor
P0474 Exhaust pressure sensor intermittent General OBD-II descriptor
P0475 Exhaust pressure control valve malfunction General OBD-II descriptor
P0476 Exhaust pressure control valve range/performance General OBD-II descriptor
P0477 Exhaust pressure control valve low General OBD-II descriptor
P0478 Exhaust pressure control valve high General OBD-II descriptor
P0479 Exhaust pressure control valve intermittent General OBD-II descriptor
P0480 Cooling fan 1 control circuit malfunction General OBD-II descriptor
P0481 Cooling fan 2 control circuit malfunction General OBD-II descriptor
P0482 Cooling fan 3 control circuit malfunction General OBD-II descriptor
P0483 Cooling fan rationality check malfunction General OBD-II descriptor
P0484 Cooling fan circuit over current General OBD-II descriptor
P0485 Cooling fan power/ground circuit malfunction General OBD-II descriptor
P0496 Evaporative emission system high purge flow General OBD-II descriptor
P0497 Evaporative emission system low purge flow General OBD-II descriptor
P0498 Evaporative emission system canister vent shut valve circuit low voltage General OBD-II descriptor
P0499 Evaporative emission system canister vent shut valve circuit high voltage General OBD-II descriptor

Px5xx Speed and Idle Regulation

43 entries
CodeDescriptionHonda note / applicability
P0500 Vehicle speed sensor malfunction General OBD-II descriptor
P0501 Vehicle speed sensor range/performance General OBD-II descriptor
P0502 Vehicle speed sensor low input General OBD-II descriptor
P0503 Vehicle speed sensor intermittent/erratic/high General OBD-II descriptor
P0505 Idle control system malfunction General OBD-II descriptor
P0506 Idle control system RPM lower than expected General OBD-II descriptor
P0507 Idle control system RPM higher than expected General OBD-II descriptor
P0510 Closed throttle position switch malfunction General OBD-II descriptor
P0511 Idle air control system RPM higher than expected General OBD-II descriptor
P0520 Engine oil pressure sensor/switch circuit malfunction General OBD-II descriptor
P0521 Engine oil pressure sensor/switch circuit range/performance General OBD-II descriptor
P0522 Engine oil pressure sensor/switch circuit low voltage General OBD-II descriptor
P0523 Engine oil pressure sensor/switch circuit high voltage General OBD-II descriptor
P0530 A/C refrigerant pressure sensor circuit malfunction General OBD-II descriptor
P0531 A/C refrigerant pressure sensor circuit range/performance General OBD-II descriptor
P0532 A/C refrigerant pressure sensor circuit low input General OBD-II descriptor
P0533 A/C refrigerant pressure sensor circuit high input General OBD-II descriptor
P0534 Air conditioner refrigerant charge loss General OBD-II descriptor
P0550 Power steering pressure sensor circuit malfunction General OBD-II descriptor
P0551 Power steering pressure sensor circuit range/performance General OBD-II descriptor
P0552 Power steering pressure sensor circuit low input General OBD-II descriptor
P0553 Power steering pressure sensor circuit high input General OBD-II descriptor
P0554 Power steering pressure sensor circuit intermittent General OBD-II descriptor
P0560 System voltage malfunction General OBD-II descriptor
P0561 System voltage unstable General OBD-II descriptor
P0562 System voltage low voltage Footnote 4
P0563 System voltage high General OBD-II descriptor
P0565 Cruise control on signal malfunction General OBD-II descriptor
P0566 Cruise control off signal malfunction General OBD-II descriptor
P0567 Cruise control resume signal malfunction General OBD-II descriptor
P0568 Cruise control set signal malfunction General OBD-II descriptor
P0569 Cruise control coast signal malfunction General OBD-II descriptor
P0570 Cruise control accel signal malfunction General OBD-II descriptor
P0571 Cruise control/brake switch A circuit malfunction General OBD-II descriptor
P0572 Cruise control/brake switch A circuit low General OBD-II descriptor
P0573 Cruise control/brake switch A circuit high General OBD-II descriptor
P0574 Cruise control related malfunction General OBD-II descriptor
P0575 Cruise control related malfunction General OBD-II descriptor
P0576 Cruise control related malfunction General OBD-II descriptor
P0576 Cruise control related malfunction General OBD-II descriptor
P0578 Cruise control related malfunction General OBD-II descriptor
P0579 Cruise control related malfunction General OBD-II descriptor
P0580 Cruise control related malfunction General OBD-II descriptor

Px6xx Computer and Output Signals

18 entries
CodeDescriptionHonda note / applicability
P0600 Serial communication link malfunction General OBD-II descriptor
P0601 Internal control module memory check sum error General OBD-II descriptor
P0602 Control module programming error Footnote 4
P0603 Internal control module keep alive memory (KAM) error General OBD-II descriptor
P0604 Internal control module random access memory (RAM) error General OBD-II descriptor
P0605 Internal control module read only memory (ROM) error General OBD-II descriptor
P0606 PCM processor fault General OBD-II descriptor
P0608 Control module VSS output A malfunction General OBD-II descriptor
P0609 Control module VSS output B malfunction General OBD-II descriptor
P0620 Generator control circuit malfunction General OBD-II descriptor
P0621 Generator lamp L control circuit malfunction General OBD-II descriptor
P0622 Generator field F control circuit malfunction General OBD-II descriptor
P0630 VIN not programmed or mismatch Honda-specific descriptor; Footnote 4
P0650 Malfunction indicator lamp (MIL) control circuit malfunction General OBD-II descriptor
P0654 Engine RPM output circuit malfunction General OBD-II descriptor
P0655 Engine hot lamp output control circuit malfunction General OBD-II descriptor
P0656 Fuel level output circuit malfunction General OBD-II descriptor
P0685 Engine control module/powertrain control module power control circuit malfunction General OBD-II descriptor

Px7xx Transmission

82 entries
CodeDescriptionHonda note / applicability
P0700 Transmission control system malfunction Footnote 3
P0701 Transmission control system range/performance General OBD-II descriptor
P0702 Transmission control system electrical General OBD-II descriptor
P0703 Torque converter/brake switch B circuit malfunction General OBD-II descriptor
P0704 Clutch switch input circuit malfunction General OBD-II descriptor
P0705 Transmission range sensor circuit malfunction (PRNDL input) General OBD-II descriptor
P0706 Transmission range sensor circuit range/performance General OBD-II descriptor
P0707 Transmission range sensor circuit low input General OBD-II descriptor
P0708 Transmission range sensor circuit high input General OBD-II descriptor
P0709 Transmission range sensor circuit intermittent General OBD-II descriptor
P0710 Transmission fluid temperature sensor circuit malfunction General OBD-II descriptor
P0711 Transmission fluid temperature sensor circuit range/performance General OBD-II descriptor
P0712 Transmission fluid temperature sensor circuit low input General OBD-II descriptor
P0713 Transmission fluid temperature sensor circuit high input General OBD-II descriptor
P0714 Transmission fluid temperature sensor circuit intermittent General OBD-II descriptor
P0715 Input/turbine speed sensor circuit malfunction General OBD-II descriptor
P0716 Input/turbine speed sensor circuit range/performance General OBD-II descriptor
P0717 Input/turbine speed sensor circuit no signal General OBD-II descriptor
P0718 Input/turbine speed sensor circuit intermittent General OBD-II descriptor
P0719 Torque converter/brake switch B circuit low General OBD-II descriptor
P0720 Output speed sensor circuit malfunction Footnote 2
P0721 Output speed sensor range/performance General OBD-II descriptor
P0722 Output speed sensor no signal General OBD-II descriptor
P0723 Output speed sensor intermittent General OBD-II descriptor
P0724 Torque converter/brake switch B circuit high General OBD-II descriptor
P0725 Engine speed input circuit malfunction General OBD-II descriptor
P0726 Engine speed input circuit range/performance General OBD-II descriptor
P0727 Engine speed input circuit no signal General OBD-II descriptor
P0728 Engine speed input circuit intermittent General OBD-II descriptor
P0730 Incorrect gear ratio General OBD-II descriptor
P0731 Gear 1 incorrect ratio General OBD-II descriptor
P0732 Gear 2 incorrect ratio General OBD-II descriptor
P0733 Gear 3 incorrect ratio General OBD-II descriptor
P0734 Gear 4 incorrect ratio General OBD-II descriptor
P0735 Gear 5 incorrect ratio General OBD-II descriptor
P0736 Reverse incorrect gear ratio General OBD-II descriptor
P0740 Torque converter clutch circuit malfunction General OBD-II descriptor
P0741 Torque converter clutch circuit performance or stuck off General OBD-II descriptor
P0742 Torque converter clutch circuit stock on General OBD-II descriptor
P0743 Torque converter clutch circuit electrical General OBD-II descriptor
P0744 Torque converter clutch circuit intermittent General OBD-II descriptor
P0745 Pressure control solenoid malfunction General OBD-II descriptor
P0746 Pressure control solenoid performance or stuck off General OBD-II descriptor
P0747 Pressure control solenoid stuck on General OBD-II descriptor
P0748 Pressure control solenoid electrical General OBD-II descriptor
P0749 Pressure control solenoid intermittent General OBD-II descriptor
P0750 Shift solenoid A malfunction General OBD-II descriptor
P0751 Shift solenoid A performance or stuck off General OBD-II descriptor
P0752 Shift solenoid A stuck on General OBD-II descriptor
P0753 Shift solenoid A electrical General OBD-II descriptor
P0754 Shift solenoid A intermittent General OBD-II descriptor
P0755 Shift solenoid B malfunction General OBD-II descriptor
P0756 Shift solenoid B performance or stock off General OBD-II descriptor
P0757 Shift solenoid B stuck on General OBD-II descriptor
P0758 Shift solenoid B electrical General OBD-II descriptor
P0759 Shift solenoid B intermittent General OBD-II descriptor
P0760 Shift solenoid C malfunction General OBD-II descriptor
P0761 Shift solenoid C performance or stuck off General OBD-II descriptor
P0762 Shift solenoid C stuck on General OBD-II descriptor
P0763 Shift solenoid C electrical General OBD-II descriptor
P0764 Shift solenoid C intermittent General OBD-II descriptor
P0765 Shift solenoid D malfunction General OBD-II descriptor
P0766 Shift solenoid D performance or stuck off General OBD-II descriptor
P0767 Shift solenoid D stuck on General OBD-II descriptor
P0768 Shift solenoid D electrical General OBD-II descriptor
P0769 Shift solenoid D intermittent General OBD-II descriptor
P0770 Shift solenoid E malfunction General OBD-II descriptor
P0771 Shift solenoid E performance or stuck off General OBD-II descriptor
P0772 Shift solenoid E stuck on General OBD-II descriptor
P0773 Shift solenoid E electrical General OBD-II descriptor
P0774 Shift solenoid E intermittent General OBD-II descriptor
P0780 shift malfunction General OBD-II descriptor
P0781 1-2 shift malfunction General OBD-II descriptor
P0782 2-3 shift malfunction General OBD-II descriptor
P0783 3-4 shift malfunction General OBD-II descriptor
P0784 4-5 shift malfunction General OBD-II descriptor
P0785 Shift/timing solenoid malfunction General OBD-II descriptor
P0786 Shift/timing solenoid range/performance General OBD-II descriptor
P0787 Shift/timing solenoid low General OBD-II descriptor
P0788 Shift/timing solenoid high General OBD-II descriptor
P0789 Shift/timing solenoid intermittent General OBD-II descriptor
P0790 Normal/performance switch circuit malfunction General OBD-II descriptor

Px8xx Transmission

3 entries
CodeDescriptionHonda note / applicability
P0801 Reverse inhibit control circuit malfunction General OBD-II descriptor
P0803 1-4 upshift (skip shift) solenoid control circuit malfunction General OBD-II descriptor
P0804 1-4 upshift (skip shift) lamp control circuit malfunction General OBD-II descriptor

P1xxx + Manufacturer Codes for Additional Emission System Function; Not Required but Reported to the Government

99 entries
CodeDescriptionHonda note / applicability
P1009 Variable valve timing control advance malfunction Honda-specific descriptor
P1106 Barometric pressure circuit range/performance Honda-specific descriptor
P1107 Barometric pressure circuit low input Honda-specific descriptor
P1108 Barometric pressure circuit high input Honda-specific descriptor
P1109 Barometric pressure sensor circuit out of range high Honda-specific descriptor; Footnote 4
P1116 Engine coolant temperature sensor circuit range/performance problem Honda-specific descriptor; Footnote 7
P1121 Throttle position lower than expected Honda-specific descriptor
P1122 Throttle position higher than expected Honda-specific descriptor
P1128 MAP lower than expected Honda-specific descriptor
P1129 MAP higher than expected Honda-specific descriptor
P1149 Primary HO2S (Sensor 1) circuit range/performance problem Honda-specific descriptor
P1157 Air fuel ratio sensor (Sensor 1) AFS circuit high voltage Honda-specific descriptor
P1162 Primary HO2S (No. 1) circuit malfunction Honda-specific descriptor
P1163 Primary HO2S (No. 1) circuit slow response Honda-specific descriptor
P1164 Primary HO2S (No. 1) circuit range/performance Honda-specific descriptor
P1165 Primary HO2S (No. 1) circuit range/performance Honda-specific descriptor
P1166 Primary HO2S (No. 1) circuit heater system electrical Honda-specific descriptor
P1167 Primary HO2S (No. 1) circuit heater system Honda-specific descriptor
P1168 Primary HO2S (No. 1) circuit LABEL low input Honda-specific descriptor
P1169 Primary HO2S (No. 1) circuit LABEL high input Honda-specific descriptor
P1172 Air fuel ratio sensor (Sensor 1) circuit out of range high Honda-specific descriptor; Footnote 4
P1253 VTEC system malfunction Honda-specific descriptor
P1257 VTEC system malfunction Honda-specific descriptor
P1258 VTEC system malfunction Honda-specific descriptor
P1259 VTEC system malfunction Honda-specific descriptor
P1297 Electrical Load Detector circuit low input Honda-specific descriptor
P1298 Electrical Load Detector circuit high input Honda-specific descriptor
P1300 Multiple cylinder misfire detected Honda-specific descriptor
P1336 CSF sensor intermittent interruption Honda-specific descriptor
P1337 CSF sensor no signal Honda-specific descriptor
P1359 CKP/TDC sensor connector disconnection Honda-specific descriptor
P1361 Intermittent interruption in TDC 1 sensor circuit Honda-specific descriptor
P1362 No signal in TDC 1 sensor circuit Honda-specific descriptor
P1366 Intermittent interruption in TDC 2 sensor circuit Honda-specific descriptor
P1367 No signal in TDC 2 sensor circuit Honda-specific descriptor
P1381 Cylinder position sensor intermittent interruption Honda-specific descriptor
P1382 Cylinder position sensor no signal Honda-specific descriptor
P1454 Fuel tank pressure sensor circuit range/performance problem General OBD-II descriptor
P1456 Evap emission control system leak detected (fuel tank system) Honda-specific descriptor
P1457 Evap emission control system leak detected (control canister system) Honda-specific descriptor
P1459 Evap emission purge flow switch malfunction Honda-specific descriptor
P1486 Thermostat range/performance problem Honda-specific descriptor
P1491 EGR valve lift insufficient detected Honda-specific descriptor
P1498 EGR valve lift sensor high voltage Honda-specific descriptor
P1508 IAC valve circuit failure Honda-specific descriptor
P1509 IAC valve circuit failure Honda-specific descriptor
P1519 Idle air control valve circuit failure Honda-specific descriptor
P1549 Charging system high voltage Honda-specific descriptor; Footnote 4
P1607 ECM/PCM internal circuit failure A Honda-specific descriptor
P1655 SEAF/SEFA/TMA/TMB signal line failure Honda-specific descriptor
P1656 Automatic transaxle Honda-specific descriptor
P1660 Automatic transaxle FI signal A circuit failure Honda-specific descriptor
P1676 FPTDR signal line failure Honda-specific descriptor
P1678 FPTDR signal line failure Honda-specific descriptor
P1681 Automatic transaxle FI signal A low input Honda-specific descriptor
P1682 Automatic transaxle FI signal A high input Honda-specific descriptor
P1686 Automatic transaxle FI signal B low input Honda-specific descriptor
P1687 Automatic transaxle FI signal B high input Honda-specific descriptor
P16BB Alternator B terminal circuit low voltage Honda-specific descriptor; Footnote 4
P16BC Alternator FR terminal circuit/IGP circuit low voltage Honda-specific descriptor; Footnote 4
P1705 Automatic transaxle concerns Honda-specific descriptor
P1706 Automatic transaxle concerns Honda-specific descriptor
P1738 Automatic transaxle concerns Honda-specific descriptor
P1739 Automatic transaxle concerns Honda-specific descriptor
P1753 Automatic transaxle concerns Honda-specific descriptor
P1758 Automatic transaxle concerns Honda-specific descriptor
P1768 Automatic transaxle concerns Honda-specific descriptor
P1773 Automatic transaxle concerns Honda-specific descriptor
P1785 Automatic transaxle concerns Honda-specific descriptor
P1786 Automatic transaxle concerns Honda-specific descriptor
P1790 Automatic transaxle concerns Honda-specific descriptor
P1791 Automatic transaxle concerns Honda-specific descriptor
P1792 Automatic transaxle concerns Honda-specific descriptor
P1793 Automatic transaxle concerns Honda-specific descriptor
P1794 Automatic transaxle concerns Honda-specific descriptor
P1870 Automatic transaxle concerns Honda-specific descriptor
P1873 Automatic transaxle concerns Honda-specific descriptor
P1879 Automatic transaxle concerns Honda-specific descriptor
P1885 Automatic transaxle concerns Honda-specific descriptor
P1886 Automatic transaxle concerns Honda-specific descriptor
P1888 Automatic transaxle concerns Honda-specific descriptor
P1890 Automatic transaxle concerns Honda-specific descriptor
P1891 Automatic transaxle concerns Honda-specific descriptor
P2195 Air fuel ratio sensor (Sensor 1) signal stuck lean Honda-specific descriptor
P2227 Barometric pressure sensor circuit range/performance problem Honda-specific descriptor
P2228 Barometric pressure sensor circuit low voltage Honda-specific descriptor
P2229 Barometric pressure sensor circuit high voltage Honda-specific descriptor
P2238 Air fuel ratio sensor (Sensor 1) AFT+ circuit low voltage Honda-specific descriptor
P2252 Air fuel ratio sensor (Sensor 1) AFS- circuit low voltage Honda-specific descriptor
P2270 Secondary heated oxygen sensor (Sensor 2) circuit signal stuck lean Honda-specific descriptor; Footnote 4
P2271 Secondary heated oxygen sensor (Sensor 2) circuit signal stuck rich Honda-specific descriptor; Footnote 4
P2279 Intake air system leak detected Honda-specific descriptor
P2422 Evaporative emission canister vent shut valve stuck closed malfunction Honda-specific descriptor
P2610 Engine control module/powertrain control module ignition OFF internal timer malfunction Honda-specific descriptor; Footnote 7
P2646 Rocker arm (VTEC) oil pressure switch circuit low voltage Honda-specific descriptor
P2647 Rocker arm (VTEC) oil pressure switch circuit high voltage Honda-specific descriptor
P2648 Rocker arm (VTEC) oil control solenoid circuit low voltage Honda-specific descriptor
P2649 Rocker arm (VTEC) oil control solenoid circuit high voltage Honda-specific descriptor
P2A00 Air fuel ratio sensor (Sensor 1) circuit range/performance problem Honda-specific descriptor

Support H.E.L.P.

Keep your Element on the road

Purchases from the Official Honda Element Parts Store help support these free guides, tools, manuals and archives.

Your next stop

Keep exploring your Element

Honda Element Technical Service Bulletins – Complete TSB List

Keep the technical reference close for your next job.

Open guide

Honda Element Service Manual

Keep the technical reference close for your next job.

Open guide

Honda Element Torque Specs Tool

Keep the technical reference close for your next job.

Open guide
FIND YOUR STARTING POINT
