Honda Element Torque Specs Tool

Ensure every bolt is tightened to perfection with the correct torque settings for your Honda Element. Proper torque is critical for safety, performance, and preventing damage during repairs or upgrades. Use this tool to quickly find factory-recommended torque specs for engine components, suspension, wheels, and more—helping you work with confidence.

Calipers

Component	Torque Value	Notes
Front Caliper Bracket to Knuckle	80.00 ft-lbs	-
Front Caliper to Bracket	25.00 ft-lbs	-
Rear Caliper Bracket to Knuckle	41.00 ft-lbs	-
Rear Caliper to Bracket	16.00 ft-lbs	-

Engine

Component	Torque Value	Notes
Cylinder Head Bolts (Initial)	29.00 ft-lbs	Procedure: Old Bolts: 29 ft-lbs, +90deg, +90deg. New Bolts: 29 ft-lbs (+60deg optional note?), +90deg, +90deg, +90deg. Apply oil. Follow sequence.
Exhaust Manifold Nuts/Bolts	33.00 ft-lbs	-
Intake Manifold Nuts/Bolts	16.00 ft-lbs	Start center, work out, alternate tightening.

Engine Oil

Component	Torque Value	Notes
Engine Oil Drain Plug	33.00 ft-lbs	-
Engine Oil Filter	9.00 ft-lbs	12 Nm. Lubricate gasket.

Front Suspension

Component	Torque Value	Notes
Front Anti-Roll Bar to Bracket	16.00 ft-lbs	22 Nm
Front Anti-Roll Bar to Control Arm	29.00 ft-lbs	39 Nm
Front Lower Ball Joint to Steering Knuckle	51.00 ft-lbs	69 Nm
Front Lower Control Arm Bushing	61.00 ft-lbs	83 Nm
Front Lower Strut/Shock Mounting Bolt	116.00 ft-lbs	157 Nm (Assuming 'mounting' refers to fork bolts)
Front Spindle Nut	181.00 ft-lbs	245 Nm. Use new nut. Oil seating surface. Stake. Replace if cracked.
Front Strut Center Shaft Nut	33.00 ft-lbs	44 Nm
Front Upper Strut/Shock Mounting Nut	33.00 ft-lbs	44 Nm (Assuming 'mounting' refers to top nuts)

Manual Transmission

Component	Torque Value	Notes
Manual Transmission Drain Plug	29.00 ft-lbs	-
Manual Transmission Fill Plug	33.00 ft-lbs	-

Rear Differential

Component	Torque Value	Notes
Rear Differential Drain Plug	35.00 ft-lbs	Install new washer. Use OE drain plug.
Rear Differential Fill Plug	35.00 ft-lbs	Install new washer. Use OE drain plug.

Rear Suspension

Component	Torque Value	Notes
Rear Hub to Control Arm Bolt	38.00 ft-lbs	52 Nm. (For 10x1.25 bolts). Rear nuts 10x1.25=28 ft-lbs/38 Nm; Nut 16x1.5=103 ft-lbs/140 Nm.
Rear Lower Strut/Shock Mounting Bolt	69.00 ft-lbs	93 Nm
Rear Spindle Nut	134.00 ft-lbs	181 Nm. Use new nut. Oil seating surface. Stake. Replace if cracked.
Rear Strut Center Shaft Nut	22.00 ft-lbs	30 Nm
Rear Upper Strut/Shock Mounting Nut	54.00 ft-lbs	74 Nm

Steering

Component	Torque Value	Notes
Steering Gear Mounting Bolt	46.00 ft-lbs	62 Nm
Steering Shaft Bolt	21.00 ft-lbs	28 Nm
Tie Rod Clamp or Jamb Nut	33.00 ft-lbs	45 Nm
Tie Rod Stud Nut	40.00 ft-lbs	54 Nm

Transfer Case

No torque specifications found for this category.

Wheel

Component	Torque Value	Notes
Wheel Lug Nut	80.00 ft-lbs	-

3/8th and 1/2 inch available

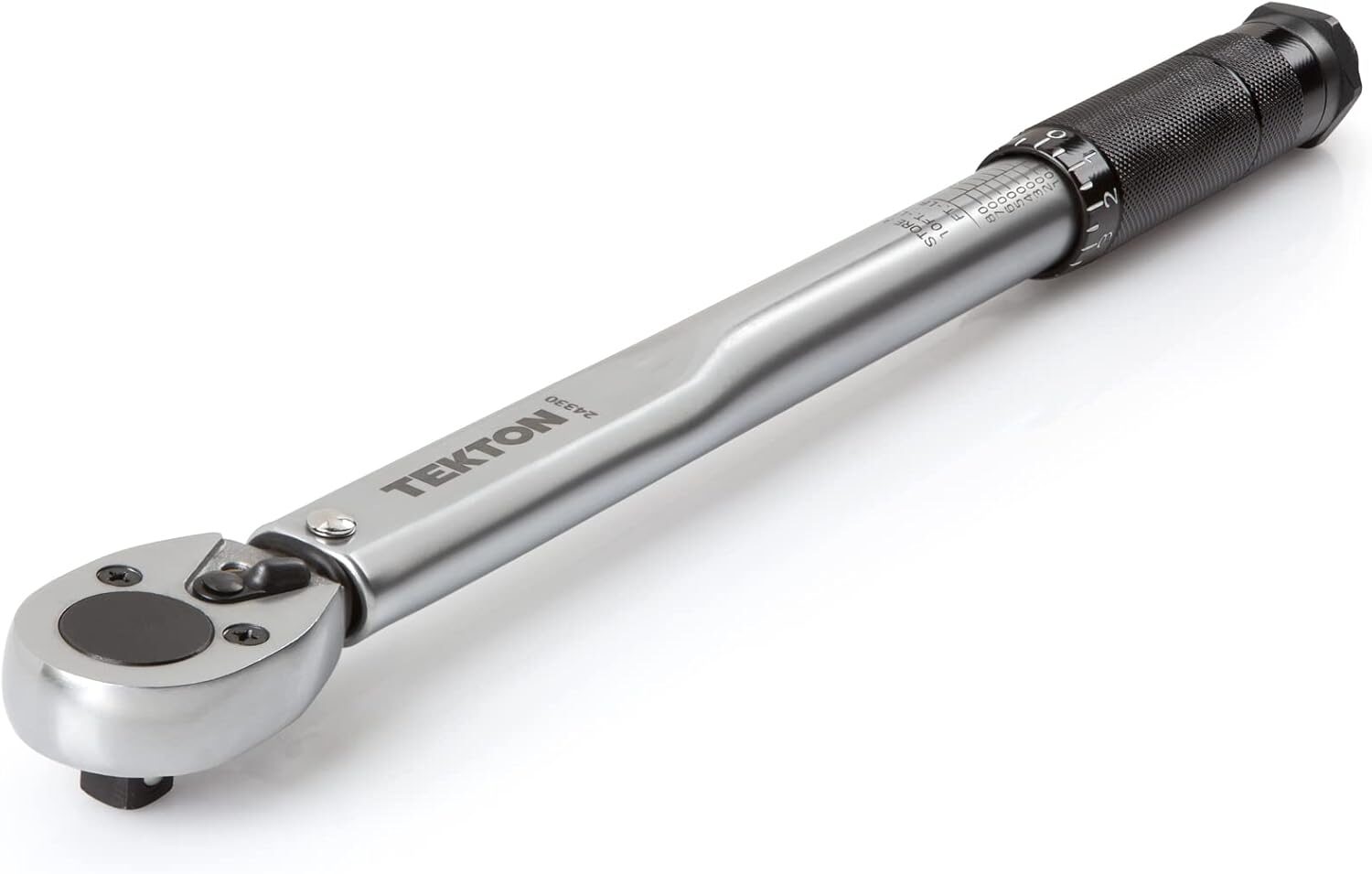

TEKTON Micrometer Torque Wrench
